Stagnation flow reactor (SFR)

Stagnation flow on a catalytic plate with in-situ sampling by a capillary technique for spatial resolution of concentration profiles analyzed by FTIR and QMS in the boundary layer above the catalytic plate.

Ref.:
C. Karakaya, R. Otterstätter, L. Maier, O. Deutschmann. Kinetics of the water-gas shift reaction over Rh/Al2O3 catalysts. Appl. Catal. A: Gen. 470 (2014) 31.
https://doi.org/10.1016/j.apcata.2013.10.030

Tubular flow reactor for monolithic catalysts with in-situ probe technique (SpaciPro)

Tubular flow reactor for monolithic catalysts. Ex-situ measurements of complete gas outlet as well as in-situ measurements of the gas phase and the temperature in a single channel (capillary-based technique). Analysis of gas composition by FTIR, EI-MS and IMR-MS. Facility used for studies on high temperature catalysis and exhaust-gas aftertreatment.

Ref.:
D. Livio, C. Diehm, A. Donazzi, A. Beretta, and O. Deutschmann. Catalytic partial oxidation of ethanol over Rh/Al2O3: Spatially resolved temperature and concentration profiles. Appl. Catal. A: Gen. 467 (2013) 530.
https://doi.org/10.1016/j.apcata.2013.07.054

Tubular Flow Reactor for gas/liquid mixtures (CPOX 2)

Tubular flow reactor for monolithic catalysts as well for packed bed configuration. Dosing of a liquid and water plus gases possible. Fuel liquid can be dosed via a 2-Components-Spray Nozzle into the reactor, water is evaporated downstream the reactor. Ex-situ measurements of complete gas outlet only. Analysis of gas composition by FTIR, IMR-MS, and Paramagnetic Oxygen Analyzer. Facility used for both studies on high temperature catalysis and exhaust-gas aftertreatment.

Ref.:
T. Kaltschmitt, C. Diehm, O. Deutschmann. Catalytic partial oxidation of isooctane to hydrogen on rhodium catalysts: effect of tail-gas recycling. Ind. Eng. Chem. Res. 51 (2012) 7536-7546.



CATHLEN (Catalysis at high temperature laser environment)

Laser setup (Nd:YAG & dye laser) using PLIF (planar laser induced fluorescence) and Raman spectroscopy for spatially resolved in-situ studies of heterogeneously catalysed gas phase reactions. The gas flow is additionally analyzed by ex-situ techniques such as FT-IR, MS, GC-MS.

Ref.:
A. Zellner, R. Suntz, O. Deutschmann. In Situ Investigations of Catalytic NO Reduction Inside an Optically Accessible Flow Reactor. Chem. Ing. Tech. 86 (2014) 538–543.
https://doi.org/10.1002/cite.201300140



Tubular flow reactors for Chemical Vapour Impregnation/ Chemical Vapour Deposition

Tubular flow reactors used for the deposition of solids from per¬ma¬nent gases, e. g. Car¬bon from light hydrocarbons. Analysis: ex situ by gas chro¬ma¬to¬gra¬phy. The equip¬ment can easily be adapt¬ed to using eva¬po¬rat¬ed liquids such as Methyltrichlorosilane (de¬po¬sition of SiC), Tita¬ni¬um¬tetrachloride (deposition of TiN), ethanol (deposition of Car¬bon) and others.

Ref.:
A. Li, S. Zhang, B. Reznik, S. Lichtenberg, G. Schoch, O. Deutschmann. Proceedings of the Combustion Institute 33 (2011) 1843-1850.
K. Norinaga, O. Deutschmann, N.i Saegusa, J.Hayashi. J. Anal. Appl. Pyrolysis 86 (2009) 148-160.

Two-Zone-Fluidized-Bed-Reactor

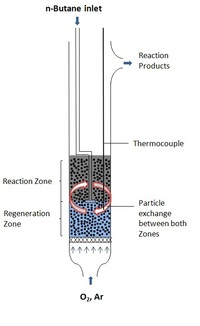

Due to the two reaction zones this reactor is able to realize reactions which are not possible in other reactor types because of catalyst deactivation. In one Zone the catalyst is regenerated and in the other Zone the catalytic reaction takes place. Two separated gas inlets and the particle exchange in a fluidized bed enables this application. A good example is the dehydrogenation of alkanes.

Ref.:
J. Rischard, C. Antinori, L. Maier, O. Deutschmann. Oxidative dehydrogenation of n-butane to butadiene with Mo-V-MgO catalysts in a two-zone fluidized bed reactor. Appl. Catal. A: Gen. 511 (2016) 23-30.
https://doi.org/10.1016/j.apcata.2015.11.026

ENERMAT Platform

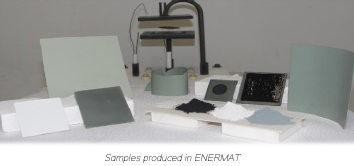

Manufacturing of innovative powder-metallurgical processed materials, covering the whole production process, from the raw material to the finished product in 3 steps: synthesis, powder processing and electrochemical measurements.

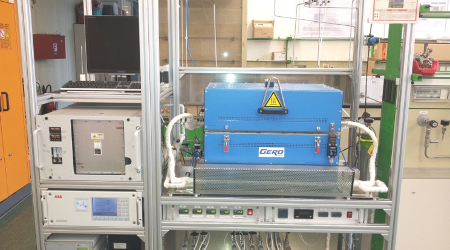

DOC Setup

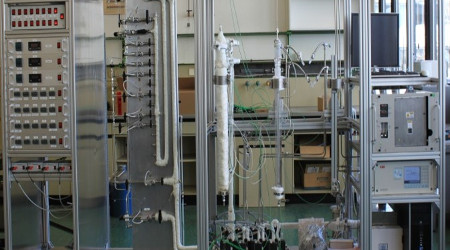

SCR Setup

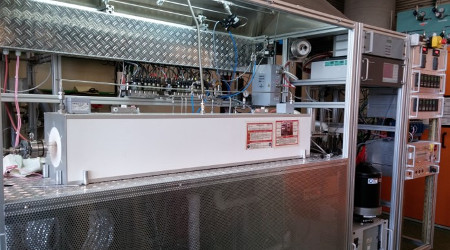

High-Flow Setup

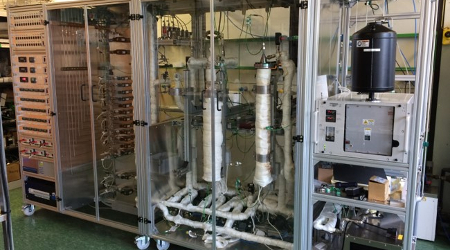

High-Pressure Setup

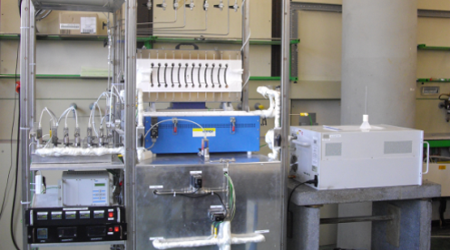

NSC Setup

CATHLEN
